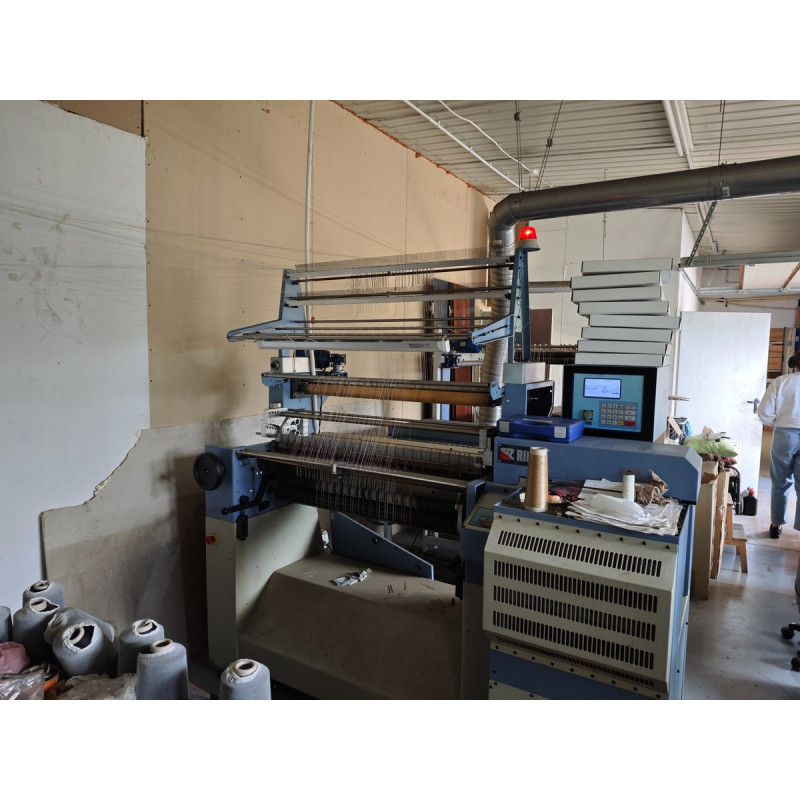

RIUS MACROELASTIC PV-E 100 cm 2 pattern bars Year 2011 electronic crochet knitting machine

RIUS MACROELASTIC PV-E high-efficiency electronic crochet knitting machine, year 2011, designed for the production of ladder tapes for Venetian blinds and other special narrow textile applications.

Technical specifications:

• year: 2011,
• working width: 1000 mm,
• gauge: 15,
• 2 electronically controlled pattern bars,
• electronically adjustable wefting up to 60 mm,
• electronic pattern programming and storage,
• central PLC control for visualization, programming and machine operation,
• electronic stop motion in case of yarn breakage or empty yarn cones,
• electronic frequency speed control,
• stitch density adjustment by interchangeable gears,
• revolution counter and pre-selection meter counter,
• safety and protection system according to EC regulations,
• power supply: 380 V / 50 Hz / 3 phase,
• serial number: 02268401.

Complete with:

• RIUS sizing and thermo-fixing unit TE-1000,
• synchronized thermo-fixing system with adjustable temperature,
• independent speed control for entry, thermo-fixing cylinder and exit,
• independent motors for entry, cylinder and exit,
• impregnation foulard for sizing liquid,
• 200-position yarn creel.

Machine suitable especially for the production of ladder tapes / spring tapes for Venetian blinds and other special technical narrow fabrics.
